Digifort arc 2

OBSERVE™ MOSS™ Clients

MOSS™ SUBSCRIPTION - OBSERVE™ Clients

The MOSS™ OBSERVE™ Client range from VMS Co. is purpose-built for viewing multiple, concurrent video streams on multiple monitors within video management systems. The following range is available to buy using our unique, monthly, MOSS™ (Managed On Site Server) maintenance subscription fee.

MOSS™ OBSERVE™ Client Range

Scroll
MOSS™ OBSERVE™ Workstation Monitor Channels Concurrent D1 Streams GPU PSU Datasheet

MOBS P-CLIENT-2M

2 48 0 1 https://www.videomanagementservers.com/assets/documents/precision-3460-sff-spec-sheet.pdf

MOBS P-CLIENT-4M

4 150 1 1 https://www.videomanagementservers.com/assets/documents/precision-3460-sff-spec-sheet.pdf
Scroll
MOSS™ OBSERVE™ 2U Rack Client Monitor Channels Concurrent D1 Streams GPU PSU Datasheet

MOBS R-CLIENT-4M

4 150 1 1 https://www.videomanagementservers.com/assets/documents/poweredge-r740xd2-spec-sheet.pdf

MOBS R-CLIENT-8M

8 300 2 1 https://www.videomanagementservers.com/assets/documents/poweredge-r740xd2-spec-sheet.pdf

Notes

Typical MOSS™ OBSERVE™ Client builds are listed above. Other builds and specifications are available on request.

All MOSS™ OBSERVE™ Client subscription servers are optimised by VMS Co. for remote viewing of video management systems and videowalls.

Concurrent D1 Streams and Monitors

Each MOSS™ Client has a maximum number of monitor connections and recommended maximum number of concurrent D1 streams quoted. The concurrent D1 streams is a budget quantity which may be allocated across all quoted monitors or some of the monitors or a single monitor, depending on the viewing requirements of the system. In heavy use cases, where many camera channels are being processed and viewed, it is the concurrent D1 stream quantities that determine the specification and performance of the Client, rather than the number of monitor channels.

Please contact VMS Co. for more information.

Contact

MOSS™ OBSERVE™ Client Specifications

The following is an overview of MOSS™ OBSERVE™ Client specifications, provided to help select the right client for your application. Comprehensive datasheets, providing far more detailed information, can be downloaded and viewed from the above MOSS™  OBSERVE™ Client product range table.

MOBS P-CLIENT-2M

MOSS™ OBSERVE™ Workstation: 2x Monitor Client

48x D1 visualisation streams @15FPS/H264 (720FPS) across up to 2x monitors (6 to 8x 1080p)

  • Precision Workstation SFF 3460 Chassis
  • H 290 x W 93 x D 293 mm for Desk
  • Storage bays / 4x 3.5" HDDs
  • Processor Intel® Core™ i7 30 MB cache 16C/24T
  • RAM 8GB
  • Intel® Integrated Graphics - 2x DP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 512GB SSD
  • Single PSU
  • 3 day support

MOBS P-CLIENT-4M

MOSS™ OBSERVE™ Workstation: 4x Monitor Client

150x D1 visualisation streams @15FPS/H264 (2250FPS) across up to 4x monitors (20x 1080p visualisation streams)

  • Precision Workstation SFF 3460 Chassis
  • H 290 x W 93 x D 293 mm for Desk
  • Storage bays / 4x 3.5" HDDs
  • Processor Intel® Core™ i7 30 MB cache 16C/24T
  • RAM 8GB
  • GPU NVIDIA® RTX™ A2000, 12 GB, 4x mDP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 256GB SSD
  • Single PSU
  • 3 day support

MOBS R-CLIENT-4M

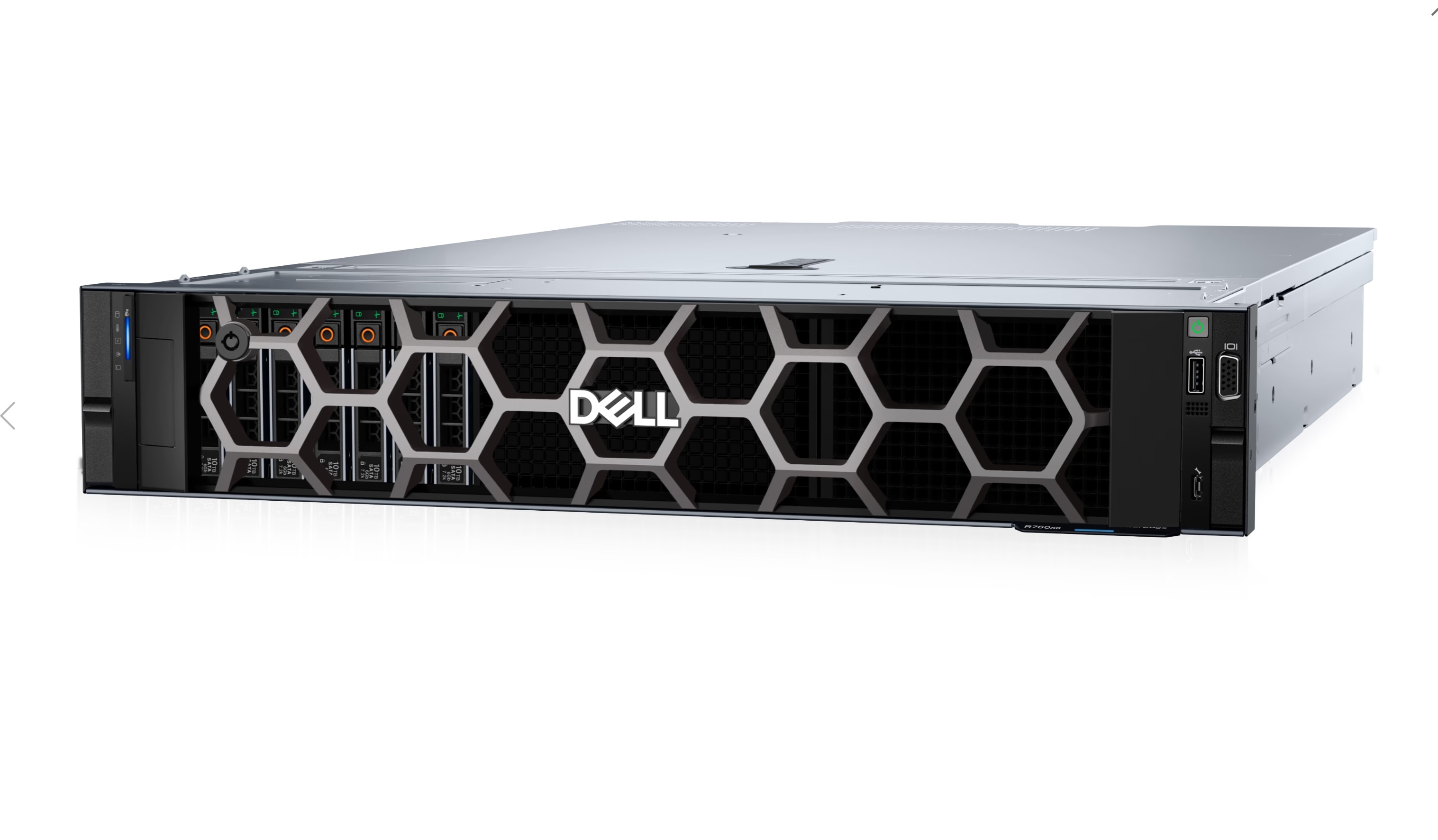

MOSS™ OBSERVE™ 2U Rack Server: 4x Monitor Client

150x D1 visualisation streams @15FPS/H264 (2250FPS) across up to 4x monitors (20x 1080p visualisation streams)

  • Precision Rack 7960 Chassis
  • Storage bays / 8x 3.5" HDDs
  • Processor Intel® Xeon Silver™ i7 12 MB cache 12C/24T
  • RAM 16GB
  • GPU NVIDIA® RTX™ A2000, 12 GB, 4x mDP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 512GB SSD
  • Single PSU
  • Next Business Day warranty

MOBS R-CLIENT-8M

MOSS™ OBSERVE™ 2U Rack Server: 8x Monitor Client

300x D1 visualisation streams @15FPS/H264 (4500FPS) across up to 8x monitors (40x 1080p visualisation streams)

  • Precision Rack 7960 Chassis
  • Storage bays / 8x 3.5" HDDs
  • Processor DUAL Intel® Xeon Silver™ i7 12 MB cache 12C/24T
  • RAM 16GB
  • GPU DUAL NVIDIA® RTX™ A2000, 12 GB, 4x mDP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 512GB SSD
  • Single PSU
  • Next Business Day warranty

Our Commitment

The minimum specifications for each server or workstation have been listed. If VMS Co. has availability of higher specification components, these may be used instead. Performance will not be compromised, it will be enhanced.

Next Business Day (NBD) warranty Service Level Agreement (SLA) is standard, unless otherwise stated.
