COMPUTE™ MOSS™ VMS Servers
MOSS™ SUBSCRIPTION - COMPUTE™ VMS Servers
The MOSS™ COMPUTE™ VMS optimised server range from VMS Co. is purpose-built for the efficient running of video management systems. The following range is designed for managing, processing and recording video from many concurrent video channels. The range listed is available to buy using our unique, monthly, MOSS™ (Managed On Site Server) maintenance subscription fee.
MOSS™ COMPUTE™ VMS Server Range
| MOSS™ COMPUTE™ Tower Server | Channels | HDD Bays | TB | PSU | RAID | Datasheet |
|---|---|---|---|---|---|---|
|
MCOM 1T40-1X-2H |
40 | 2 | 24 | 1 | https://www.videomanagementservers.com/assets/documents/Precision-5820-Tower-Spec-Sheet.pdf |
| MOSS™ COMPUTE™ 1U Rack Server | Channels | HDD Bays | TB | PSU | RAID | Datasheet |
|---|---|---|---|---|---|---|
|
MCOM 1U40-1X-4H |
40 | 4 | 24 | 1 | https://www.videomanagementservers.com/assets/documents/PowerEdge-R240-datasheet.pdf | |
|
MCOM 1U80-1X-4HR |
80 | 4 | 48 | 1 | https://www.videomanagementservers.com/assets/documents/PowerEdge-R240-datasheet.pdf |
| MOSS™ COMPUTE™ 2U Rack Server | Channels | HDD Bays | TB | PSU | RAID | Datasheet |
|---|---|---|---|---|---|---|
|
MCOM 2U80-2X-12HR |
80 | 12 | 96 | 2 | https://www.videomanagementservers.com/assets/documents/poweredge-r740xd2-spec-sheet.pdf | |
|
MCOM 2U140-2XS-12HR |
140 | 12 | 144 | 2 | https://www.videomanagementservers.com/assets/documents/poweredge-r740xd2-spec-sheet.pdf |
| MOSS™ COMPUTE™ 4U Rack Server | Channels | HDD Bays | TB | PSU | RAID | Datasheet |
|---|---|---|---|---|---|---|
|
MCOM 4U170-2XP-24HR |
170 | 24 | 288 | 2 | https://www.videomanagementservers.com/assets/documents/poweredge-r740xd2-spec-sheet.pdf |
Notes:
MOSS™ servers come with HDDs fitted. 12TB HDDs are used as standard, but other HDDs' storage sizes can be specified.
Other server builds and specifications are available on request.
Where a server has RAID capability, please request the RAID set up required.
All MOSS™ COMPUTE™ VMS subscription servers are optimised by VMS Co. for running VMS systems.
MOSS™ COMPUTE™ VMS Specifications
The following is an overview of MOSS™ COMPUTE™ VMS specifications, provided to help select the right VMS server for your application. Comprehensive datasheets, providing far more detailed information, can be downloaded and viewed from the above MOSS™ COMPUTE™ VMS server product range table.

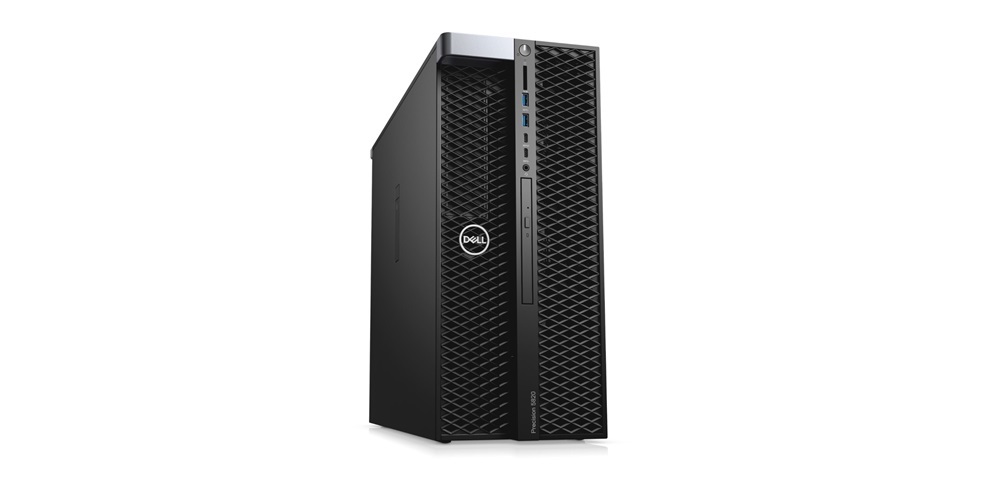

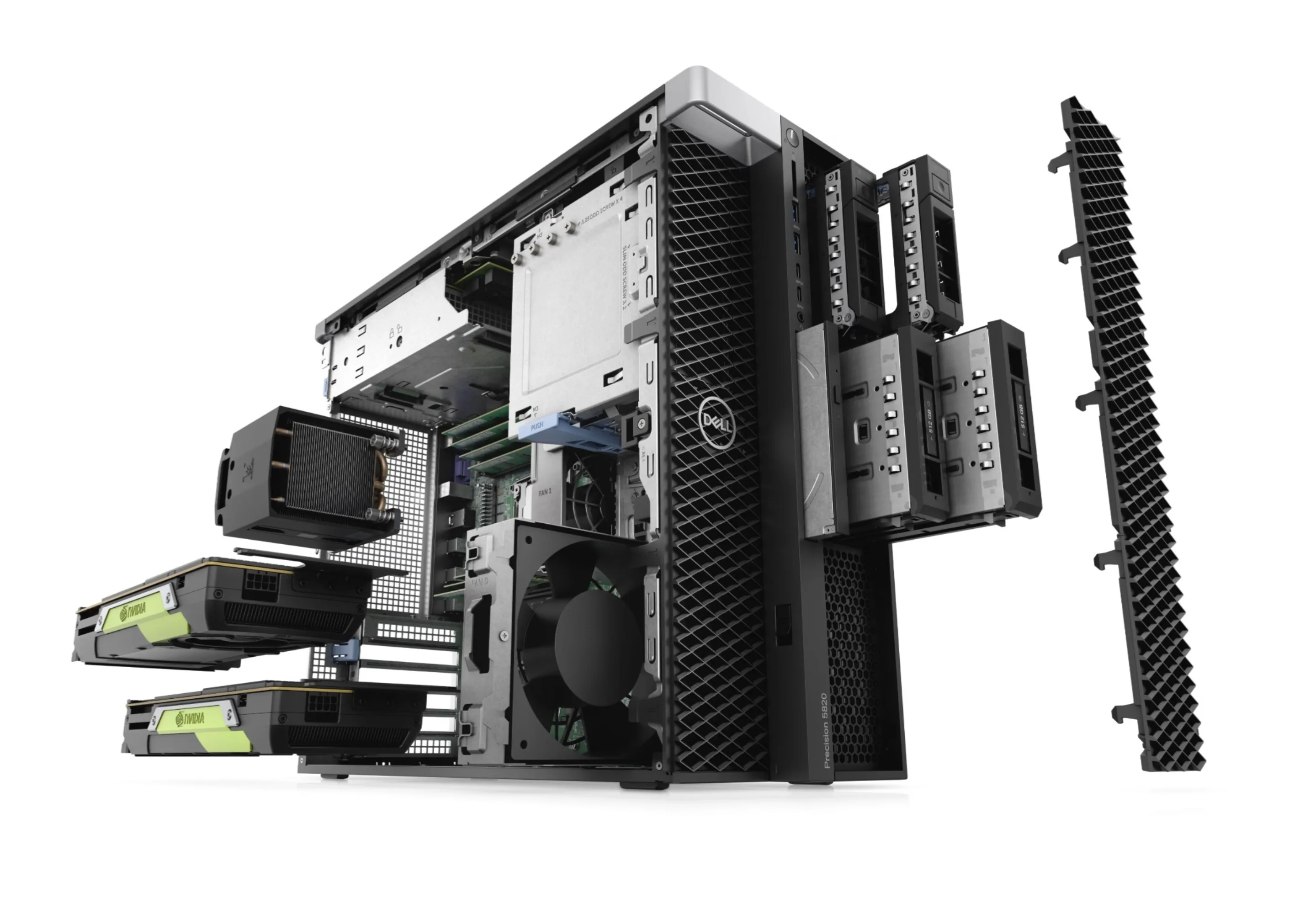

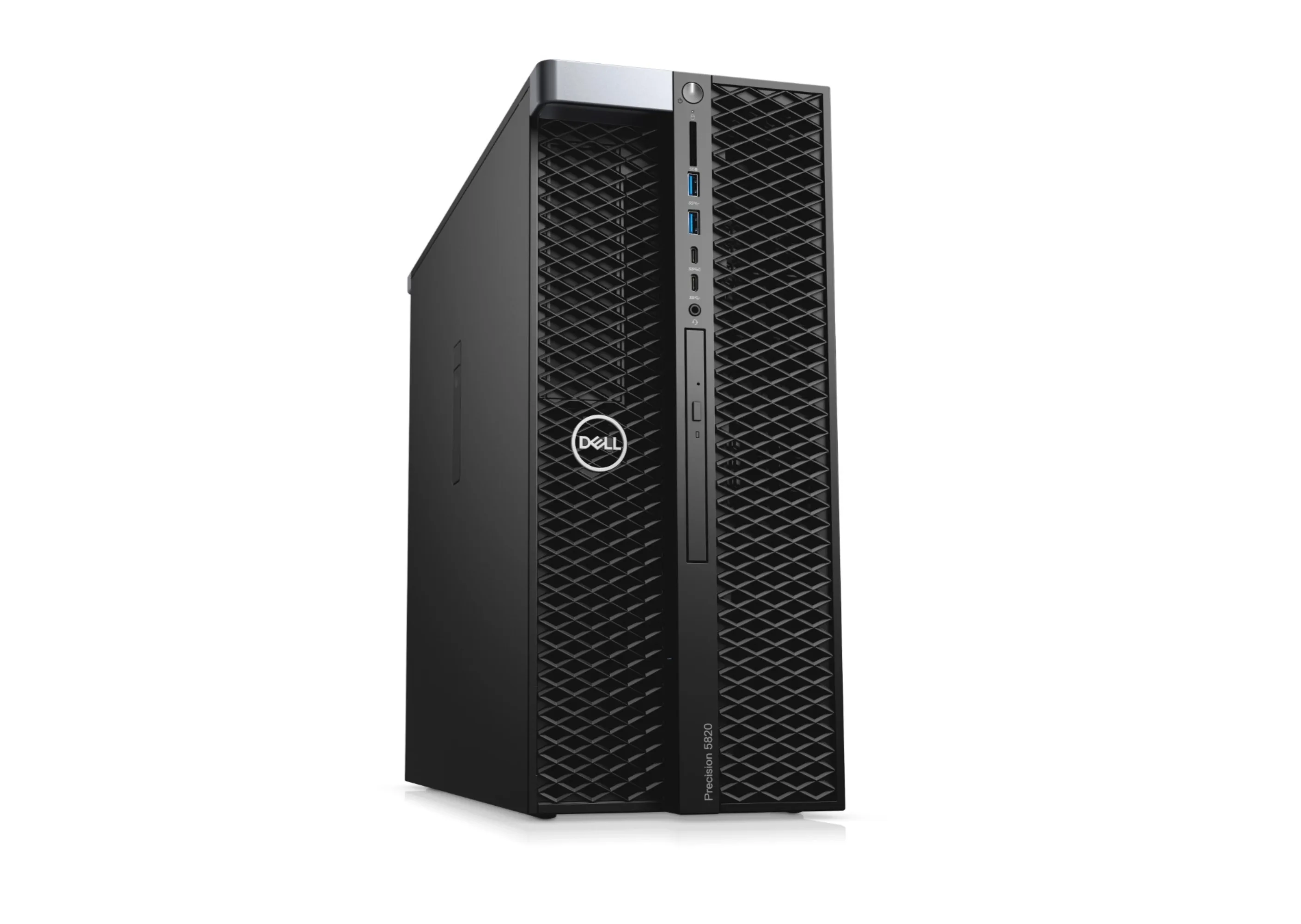

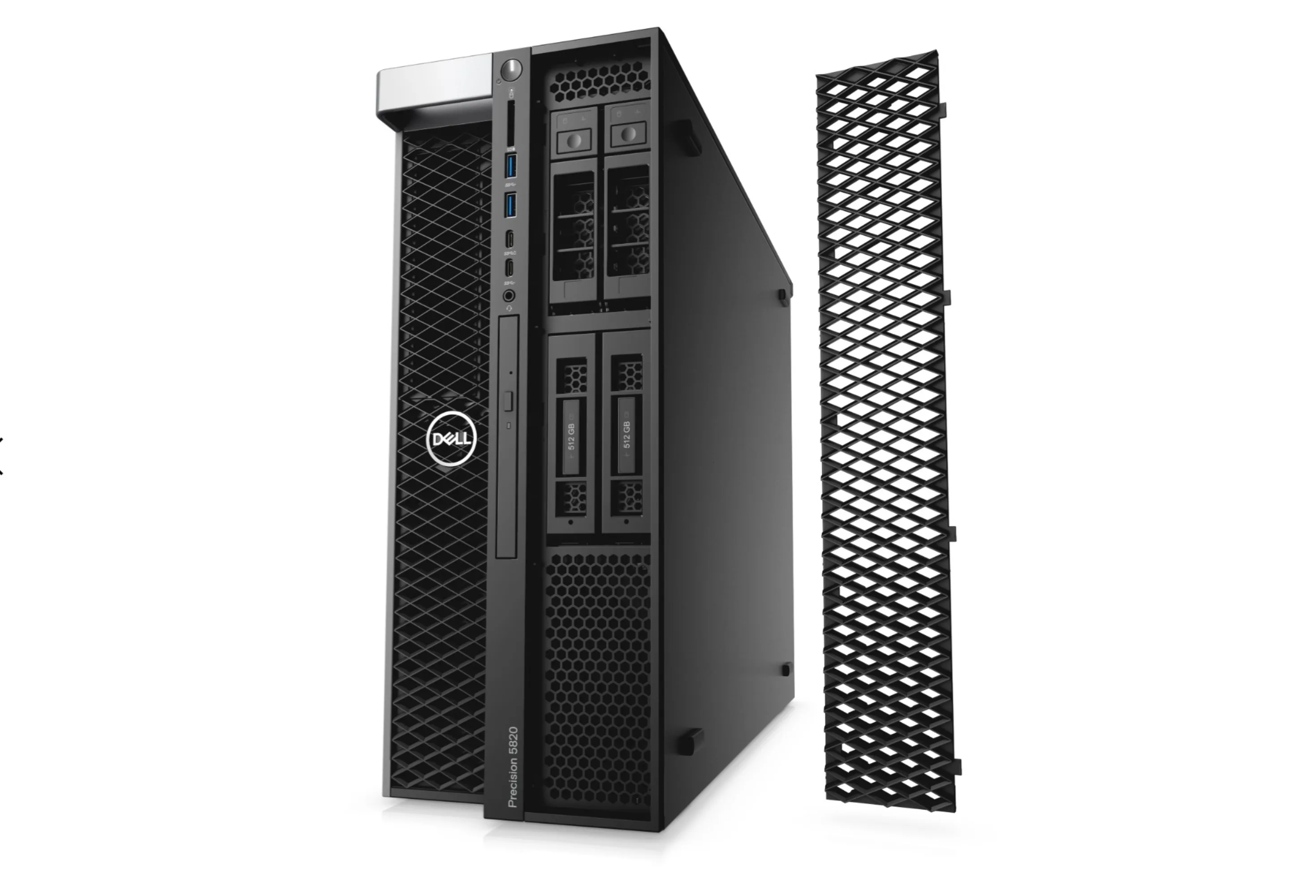

MCOM 1T40-1X-2H
40 channel, Tower - 2 HDD bays - No RAID
- T5820 Tower Chassis
- Storage bays / 2x 3.5" HDDs
- 24TB = 2x 12TB Dell SATA
- Processor Intel® Xeon 4C 8M Cache
- Recording examples 1000FPS: 40x 2MP@25FPS / 40x 4MP@12FPS
- RAM 8GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB SSD
- Single PSU
- 3 day support
MCOM 1U40-1XW-4H
40 channel, 1U Rack - 4 HDD bays - No RAID
- R240 Chassis / Rails
- Storage bays / 4x 3.5" HDDs
- 48TB = 4x 12TB Dell SATA
- Processor Intel® Xeon 4C 8M Cache
- Recording examples 1000FPS: 40x 2MP@25FPS / 40x 4MP@12FPS
- RAM 16GB
- Dashboard iDRAC Enterprise Included
- Operating system Windows Server 2019 / 2022
- OS drives 1x 240GB SSD
- Single PSU
- Next Business Day support
MCOM 1U80-1X-4HR
80 channel, 1U Rack - 4 HDD bays - RAID
- R240 Chassis / Rails
- Storage bays / 4x 3.5" HDDs
- 48TB = 4x 12TB Dell SATA (If setup as RAID5 total 30TB)
- Processor Intel® Xeon® 6C 16M Cache
- Recording examples 2000FPS: 80x 2MP@25FPS / 80x 4MP@12FPS / H265
- RAM 32GB
- Dashboard iDRAC Enterprise Included
- Operating system Windows Server 2019 / 2022
- OS drives 2x 240GB SSD
- Single PSU
- Next Business Day support

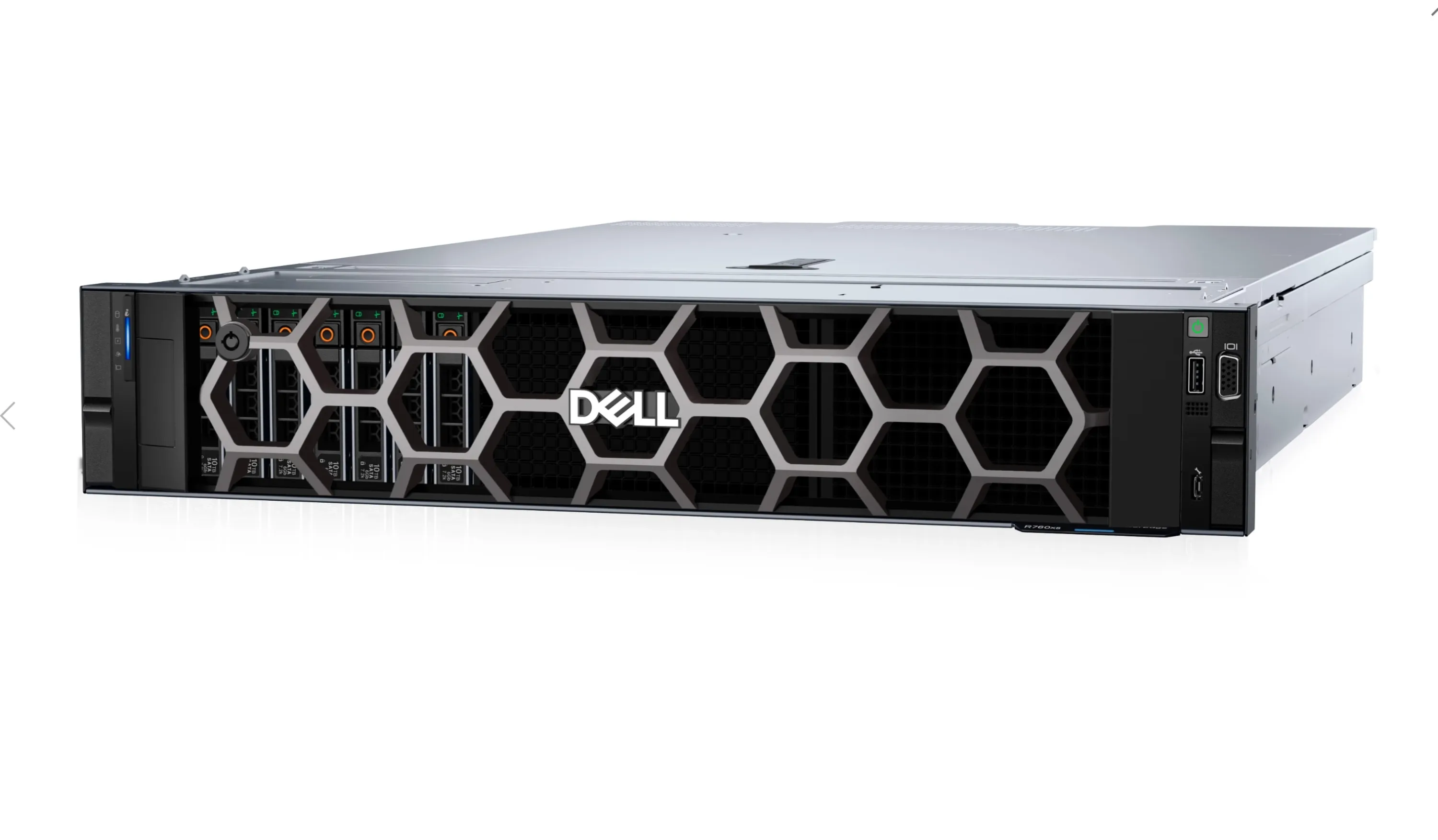

MCOM 2U80-2X-12HR
80 channel, 2U Rack - 12 HDD bays - RAID
- R740XD Chassis / Rails
- Storage bays / 12x 3.5" HDDs
- 96TB = 8x 12TB Dell SATA (If setup in RAID5 total 78TB)
- Processor Intel® Xeon® 6C 16M Cache
- Recording examples 2000FPS: 80x 2MP@25FPS / 80x 4MP@12FPS / H265
- RAM 32GB
- Dashboard iDRAC Enterprise Included
- Operating system Windows Server 2019 / 2022
- OS drives 2x 240GB SSD
- Dual PSU
- Next Business Day support
MCOM 2U140-2XS-12HR
140 channel, 2U Rack - 12 HDD bays - RAID
- R740XD Chassis / Rails
- Storage bays / 12x 3.5" HDDs
- 144TB = 12x 12TB Dell SATA (If setup in RAID5 total 126TB)
- Processor Intel® Xeon® Silver 12C 30M Cache
- Recording examples 3500FPS: 140x 2MP@25FPS / 140x 4MP@12FPS / H265
- RAM 32GB
- Dashboard iDRAC Enterprise Included
- Operating system Windows Server 2019 / 2022
- OS drives 2x 240GB SSD
- Dual PSU
- Next Business Day support

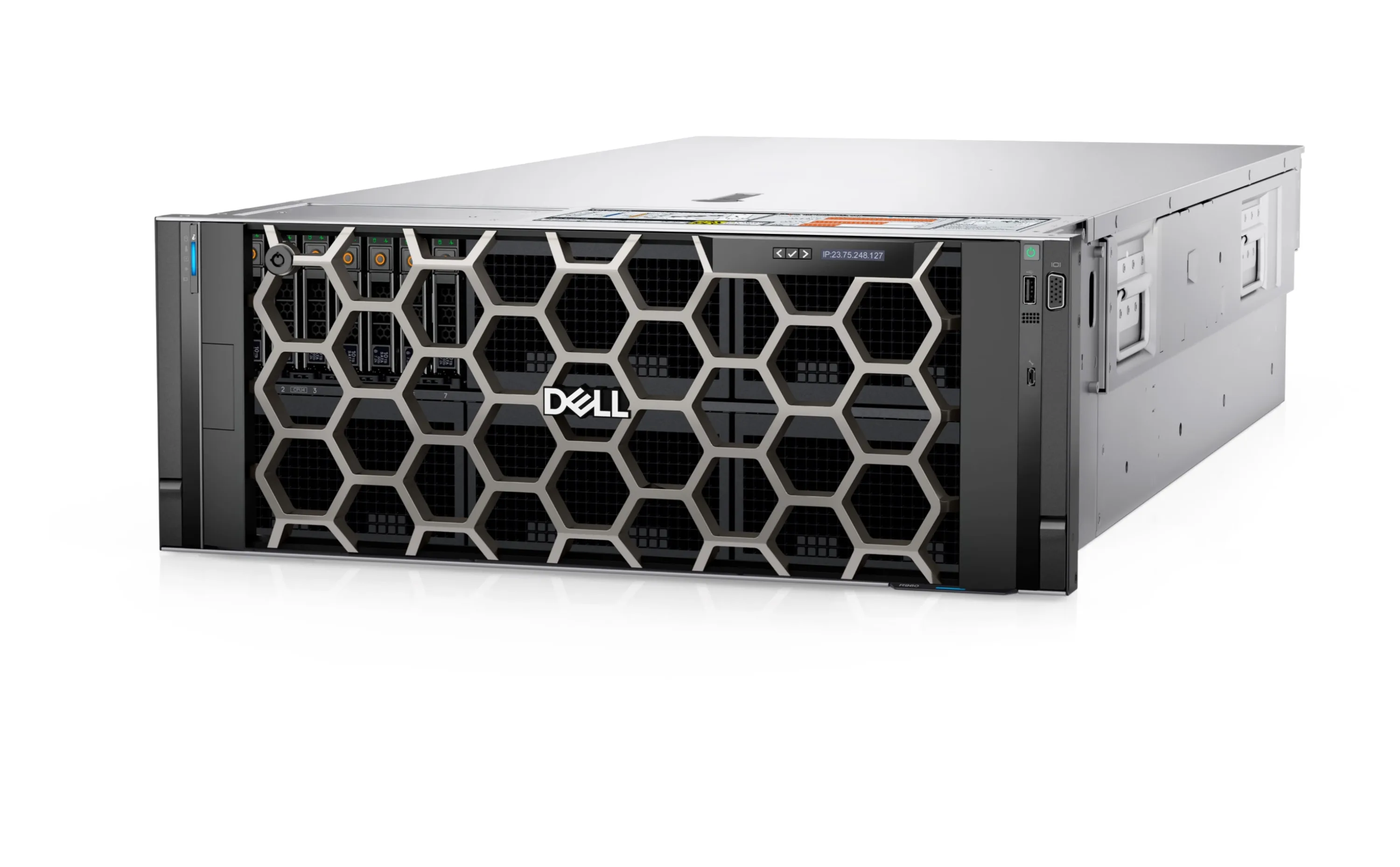

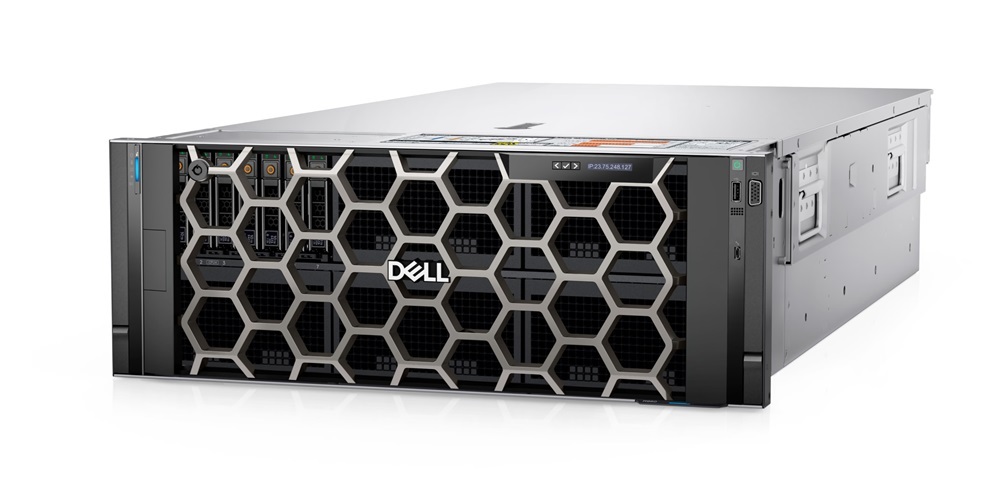

MCOM 4U170-2XP-24HR
170 channel, 4U Rack - 24 HDD bays - RAID
- R740XD2 Chassis / Rails
- Storage bays / 24x 3.5" HDDs
- 288TB = 24x 12TB Dell SATA (If setup in RAID5 total 230TB)
- Dual Processor / DUAL Intel® Xeon® Silver 12C 30M Cache
- Recording examples 4250FPS: 170x 2MP@25FPS / 170x 4MP@12FPS
- RAM 64GB
- Dashboard iDRAC Enterprise Included
- Operating system Windows Server 2019 / 2022
- OS drives 2x 240GB SSD
- Dual PSU
- Next Business Day support
Our Commitment
The minimum specifications for each server have been listed. If VMS Co. has availability of higher specification components, these may be used instead. Performance will not be compromised, it will be enhanced.
Next Business Day (NBD) warranty Service Level Agreement (SLA) is standard, unless otherwise stated.

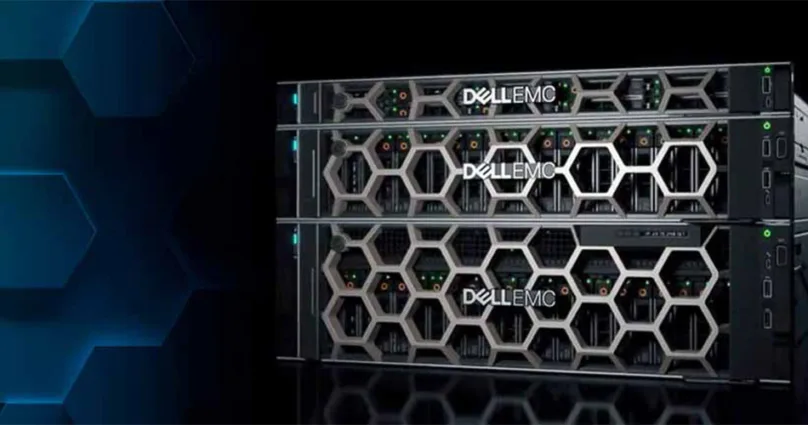

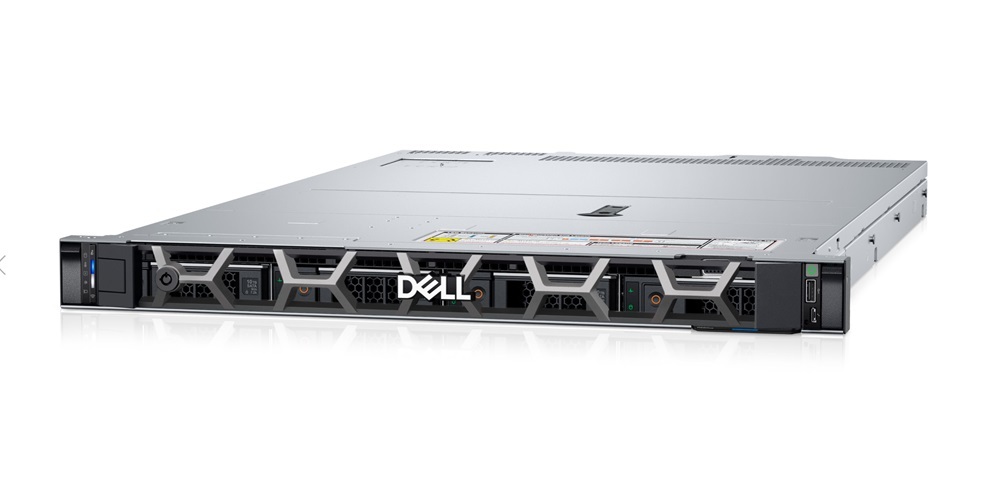

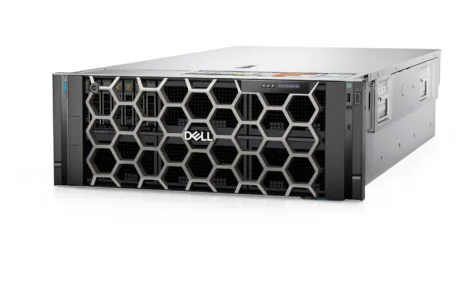

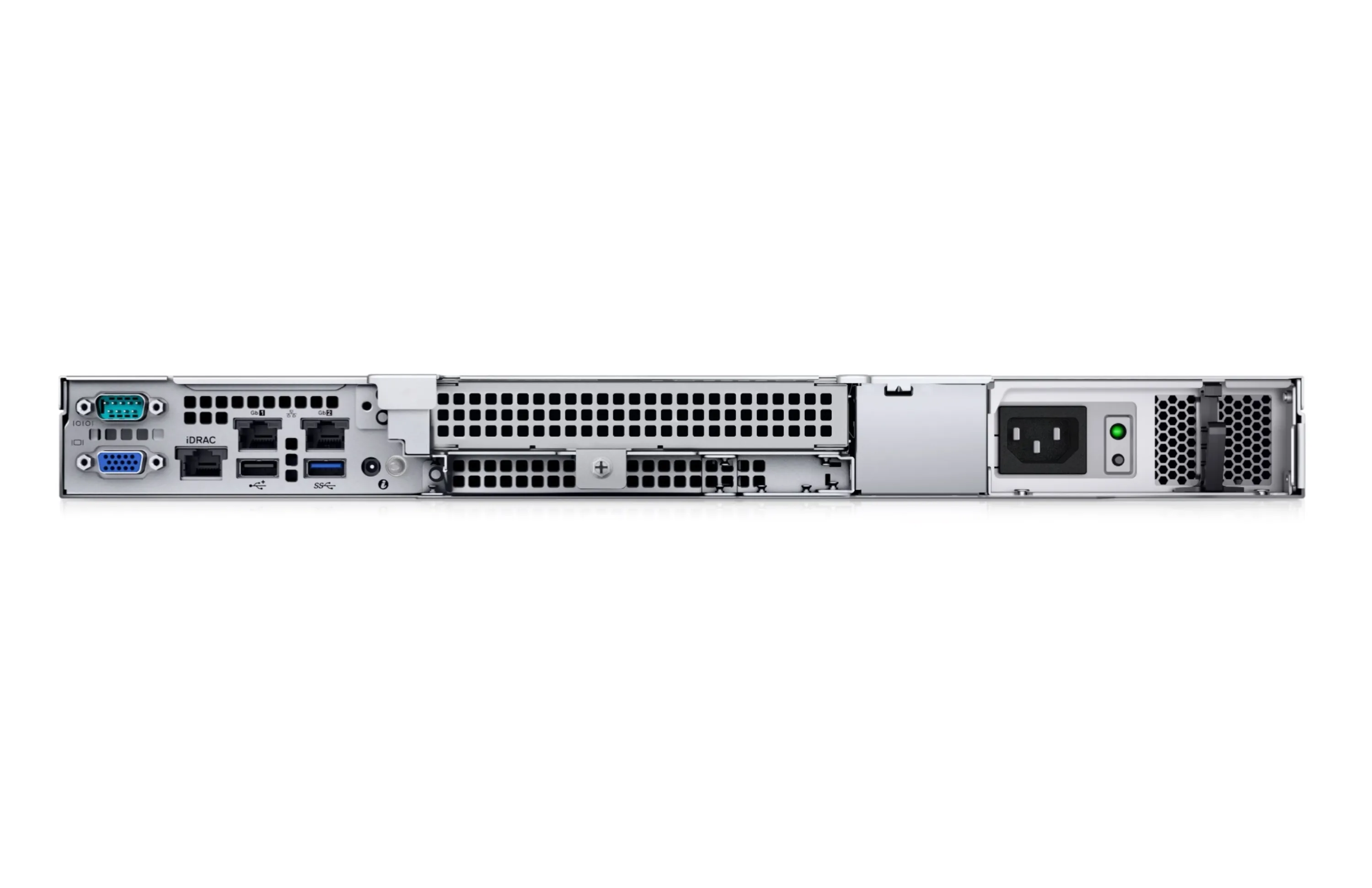

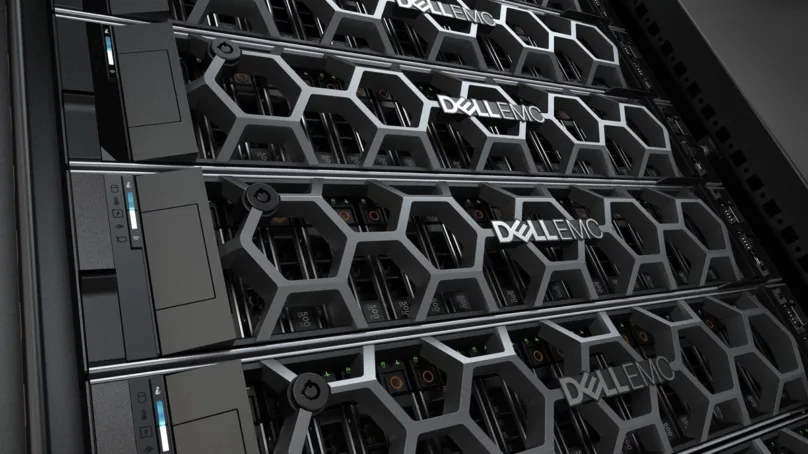

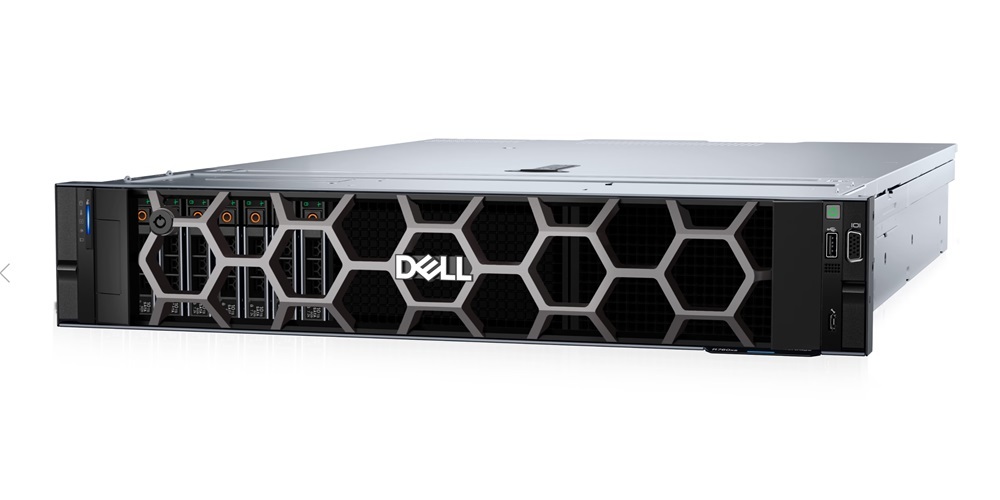

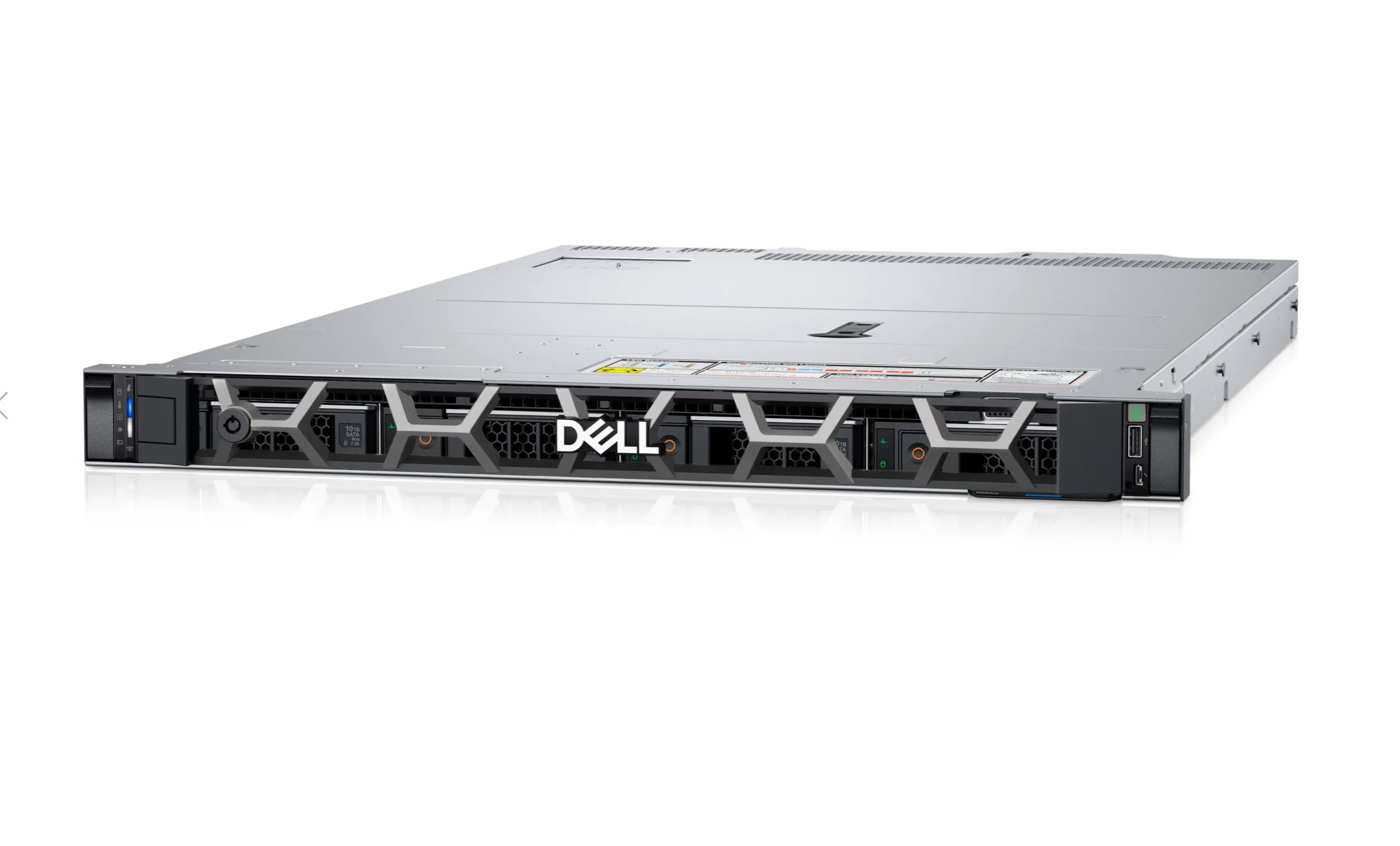

MOSS™ COMPUTE™ VMS Server Images
