COMPUTE™ VMS Servers
PURCHASE - COMPUTE™ VMS Servers
The COMPUTE™ VMS optimised server range from VMS Co. is purpose-built for the efficient running of video management systems. The following range is designed for managing, processing and recording video from many, concurrent video channels. The range listed is available to purchase outright, supported by the manufacturer's next-business-day (NBD) warranty.
COMPUTE™ VMS Server Range
Scroll

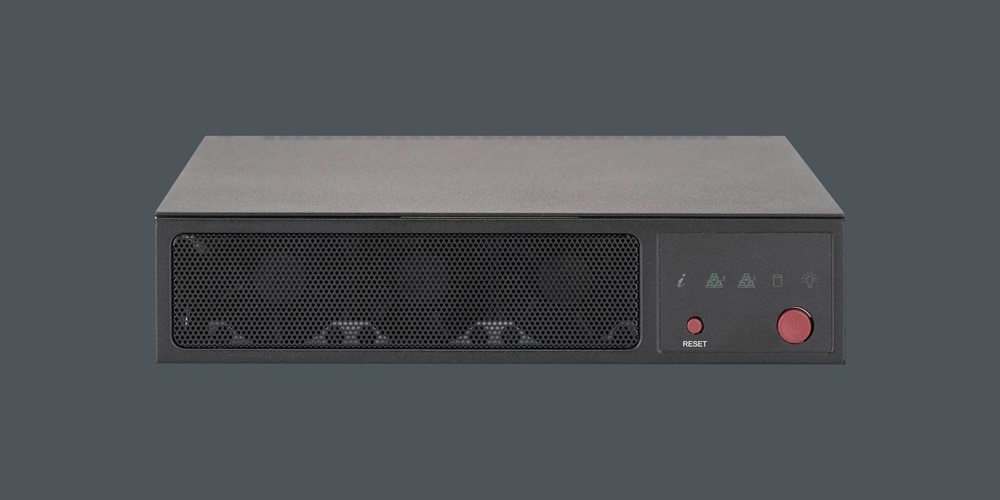

| COMPUTE™ 1U Desk Server | Channels | HDD Bays | PSU | RAID | Datasheet |
|---|---|---|---|---|---|
|
COM 1D20-1A-4H
|
20 | 2 | 1 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-1U-Desk-Server-012025.pdf | |
|
COM 1D40-1AP-4H
|
40 | 2 | 1 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-1U-Desk-Server-012025.pdf |
Scroll

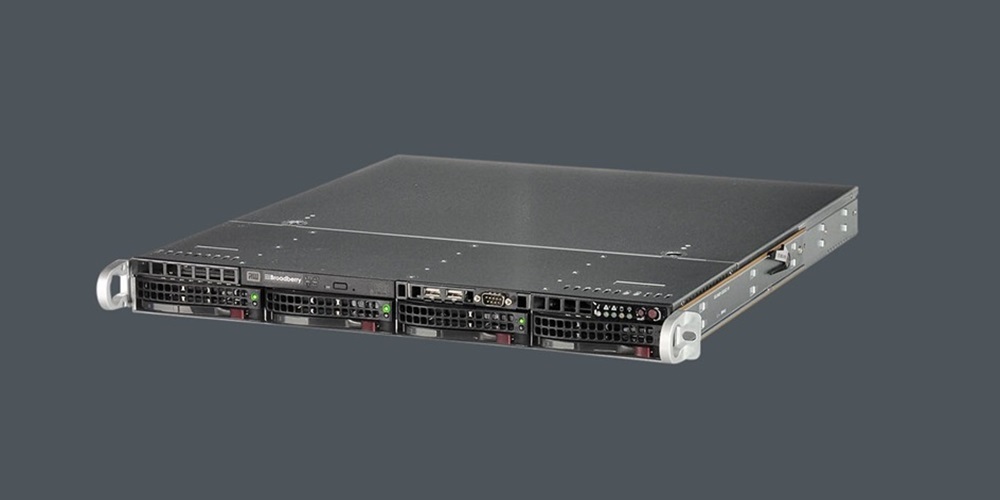

| COMPUTE™ 1U Rack Server | Channels | HDD Bays | PSU | RAID | Datasheet |
|---|---|---|---|---|---|
|
COM 1U20-1A-4H
|
20 | 4 | 1 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-1U-Rack-Server-012025.pdf | |
|
COM 1U40-1AP-4H
|
40 | 4 | 1 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-1U-Rack-Server-012025.pdf | |
|
COM 1U80-1X-4HR
|
80 | 4 | 1 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-1U-Rack-Server-012025.pdf | |
|
COM 1U80-2X-4HR
|
80 | 4 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-1U-Rack-Server-012025.pdf |
Scroll
| COMPUTE™ 2U Rack Server | Channels | HDD Bays | PSU | RAID | Datasheet |
|---|---|---|---|---|---|
|
COM 2U80-2X-12HR
|
80 | 12 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-2U-Rack-Server-012025.pdf | |
|
COM 2U140-2XS-12HR
|
140 | 12 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-2U-Rack-Server-012025.pdf | |
|
COM 2U170-2XP-12HR
|
170 | 12 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-2U-Rack-Server-012025.pdf |
Scroll
| COMPUTE™ 4U Rack Server | Channels | HDD Bays | PSU | RAID | Datasheet |
|---|---|---|---|---|---|
|
COM 4U140-2XS-24HR
|
140 | 24 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-4U-Rack-Server-012025.pdf | |
|
COM 4U170-2XP-24HR
|
170 | 24 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-4U-Rack-Server-012025.pdf | |
|
COM 4U170-2XP-36HR
|
170 | 36 | 2 | https://www.videomanagementservers.com/assets/documents/VMS-Ltd-COMPUTE-VMS-4U-Rack-Server-012025.pdf |
Note:
Other server builds and specifications are available on request.
All COMPUTE™ VMS servers are optimised by VMS Co. for running VMS systems.
COMPUTE™ VMS Specifications
The following is an overview of COMPUTE™ VMS specifications, provided to help select the right VMS server for your application. Comprehensive datasheets, providing far more detailed information, can be downloaded and viewed from the above COMPUTE™ VMS server product range table.
COM 1D20-1A-2H
20 channel, desk mounted - 2 HDD bays - No RAID
- Storage bays / 2x 3.5" HDDs / 250 D x 210 W x 44 H
- Processor Intel® Atom® 4C
- Recording examples 500FPS: 20x 2MP@25FPS / 20x 4MP@12FPS
- RAM 8GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD
- Single PSU 60W power adaptor
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 1D40-1AP-2H
40 channel, desk mounted - 2 HDD bays - No RAID
- Storage bays / 2x 3.5" HDDs / 250 D x 210 W x 44 H
- Processor Intel® Atom® 8C
- Recording examples 1000FPS: 20x 2MP@25FPS / 20x 4MP@12FPS
- RAM 8GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD
- Single PSU 60W power adaptor
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 1U20-1A-4H
20 channel, 1U rack mounted - 4 HDD bays - No RAID
- Storage bays / 4x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Atom® 4C
- Recording examples 500FPS: 20x 2MP@25FPS / 20x 4MP@12FPS
- RAM 8GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD
- Single PSU 350W
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 1U40-1AP-4H
40 channel, 1U rack mounted - 4 HDD bays - No RAID
- Storage bays / 4x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Atom® 8C
- Recording examples 1000FPS: 40x 2MP@25FPS / 40x 4MP@12FPS
- RAM 8GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD
- Single PSU 350W
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 1U80-1X-4HR
80 channel, 1U rack mounted - 4 HDD bays - RAID
- Storage bays / 4x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® E-2300 6C/12T 12M cache (min)
- Recording examples 2000FPS: 80x 2MP@25FPS / 80x 4MP@12FPS
- RAM 16GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 480GB NVMe SSD
- Single PSU 350W
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 1U80-2X-4HR
80 channel, 1U rack mounted - 4 HDD bays - RAID
- Storage bays / 4x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® E-2300 6C/12T 12M cache (min)
- Recording examples 2000FPS: 80x 2MP@25FPS / 80x 4MP@12FPS
- RAM 16GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 480GB NVMe SSD
- Dual redundant PSU 400W
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 2U80-2X-12HR
80 channel, 2U rack mounted - 12 HDD bays - RAID
- Storage bays / 12x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® E-2300 6C/12T 12M cache (min)
- Recording examples 2000FPS: 80x 2MP@25FPS / 80x 4MP@12FPS
- RAM 16GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 500GB NVMe SSD
- Dual redundant PSU 920W / Hot Swap
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 2U140-2XS-12HR
140 channel, 2U rack mounted - 12 HDD bays - RAID
- Storage bays / 12x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® Silver 12C/24T 30M Cache
- Recording examples 3500FPS: 140x 2MP@25FPS / 140x 4MP@12FPS
- RAM 16GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 500GB NVMe SSD
- Dual redundant PSU 920W / Hot Swap
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 2U170-2XP-12HR
170 channel, 2 U rack mounted - 12 HDD bays - RAID
- Storage bays / 12x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® Silver Plus 24C/48T 45M Cache
- Recording examples 4250FPS: 170x 2MP@25FPS / 170x 4MP@12FPS
- RAM 32GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 500GB NVMe SSD
- Dual redundant PSU 920W / Hot Swap
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 4U140-2XS-24HR
140 channel, 4U rack mounted - 24 HDD bays - RAID
- Storage bays / 24x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® Silver 12C/24T 30M Cache
- Recording examples 3500FPS: 140x 2MP@25FPS / 140x 4MP@12FPS
- RAM 32GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD Rear Mounted
- Dual redundant PSU 1280W / Hot Swap
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 4U170-2XP-24HR
170 channel, 4U rack mounted - 24 HDD bays - RAID
- Storage bays / 24x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® Silver Plus 20C/40T 37.5M Cache
- Recording examples 4250FPS: 170x 2MP@25FPS / 170x 4MP@12FPS
- RAM 32GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD Rear Mounted
- Dual redundant PSU 1280W / Hot Swap
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost
COM 4U170-2XP-36HR
170 channel, 4U rack mounted - 36 HDD bays - RAID
- Storage bays / 36x 3.5" HDDs / Hot Swap / Rack Rails
- Processor Intel® Xeon® Silver Plus 20C/40T 37.5M Cache
- Recording examples 4250FPS: 170x 2MP@25FPS / 170x 4MP@12FPS
- RAM 32GB
- Dashboard
- Operating system Windows Server 2019 / 2022
- OS drives 1x 250GB NVMe SSD Rear Mounted
- Dual redundant PSU 1280W / Hot Swap
- 9 - 5 tech support. Return to base warranty
- NBD warranty option at extra cost

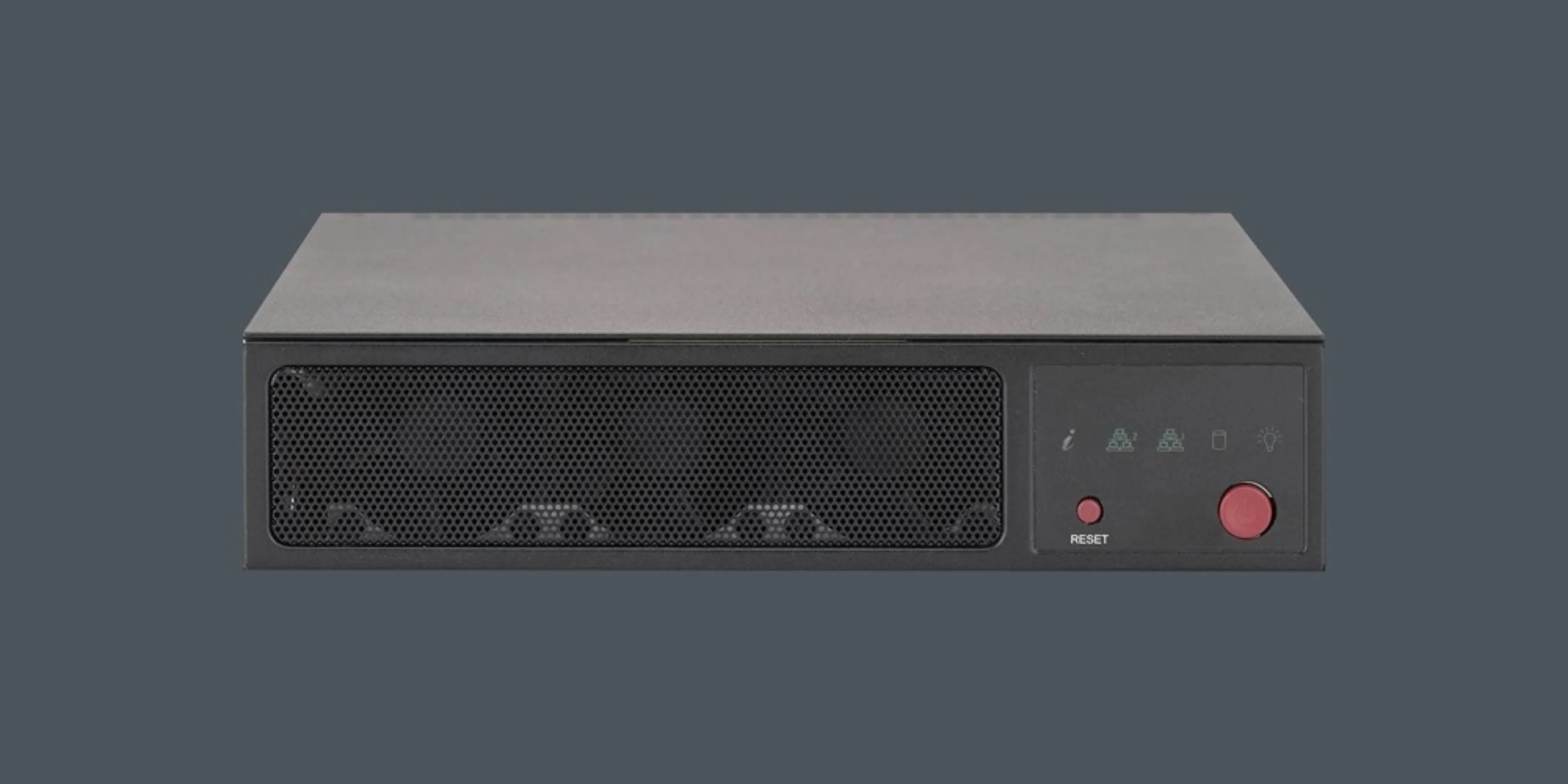

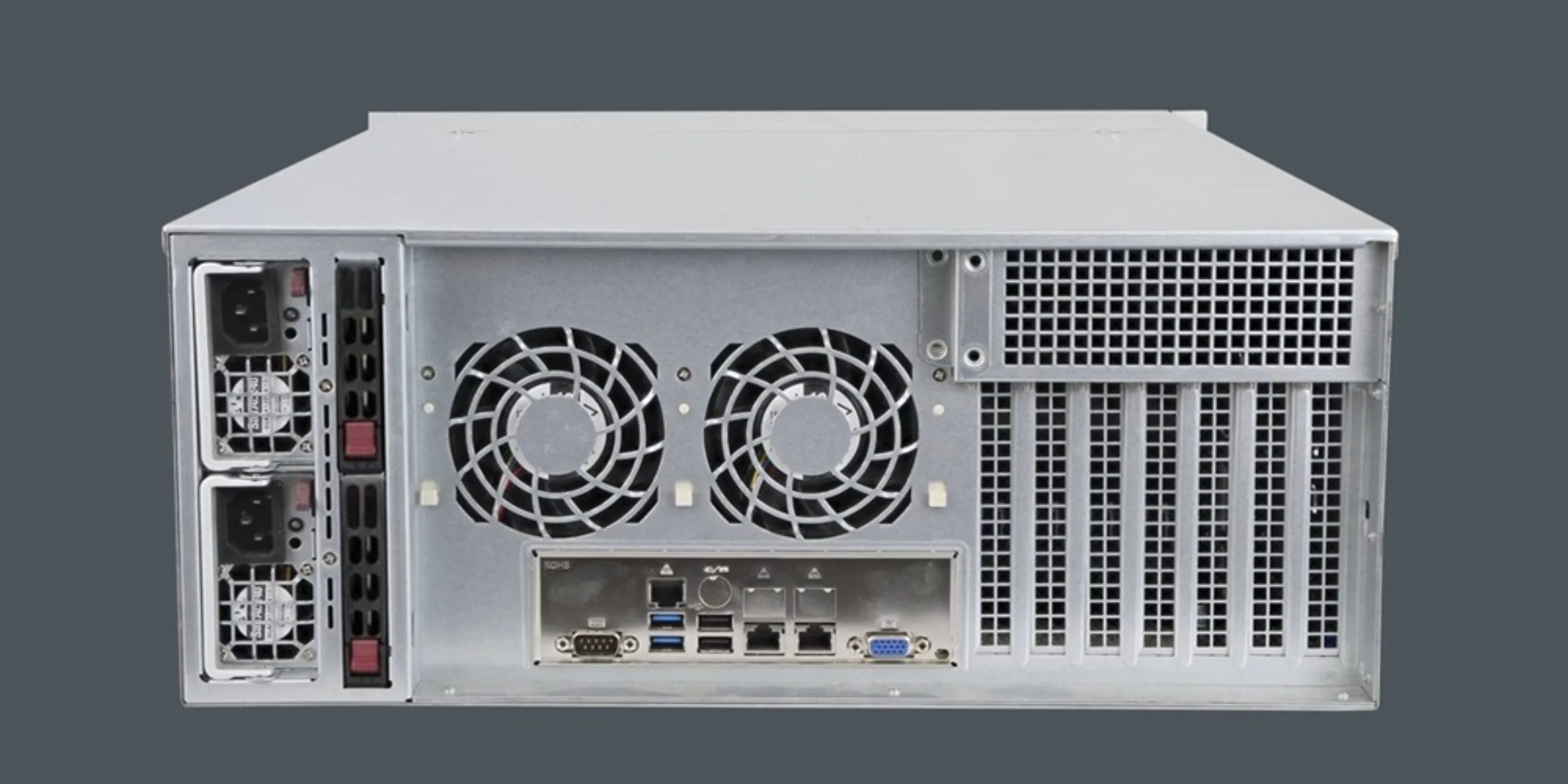

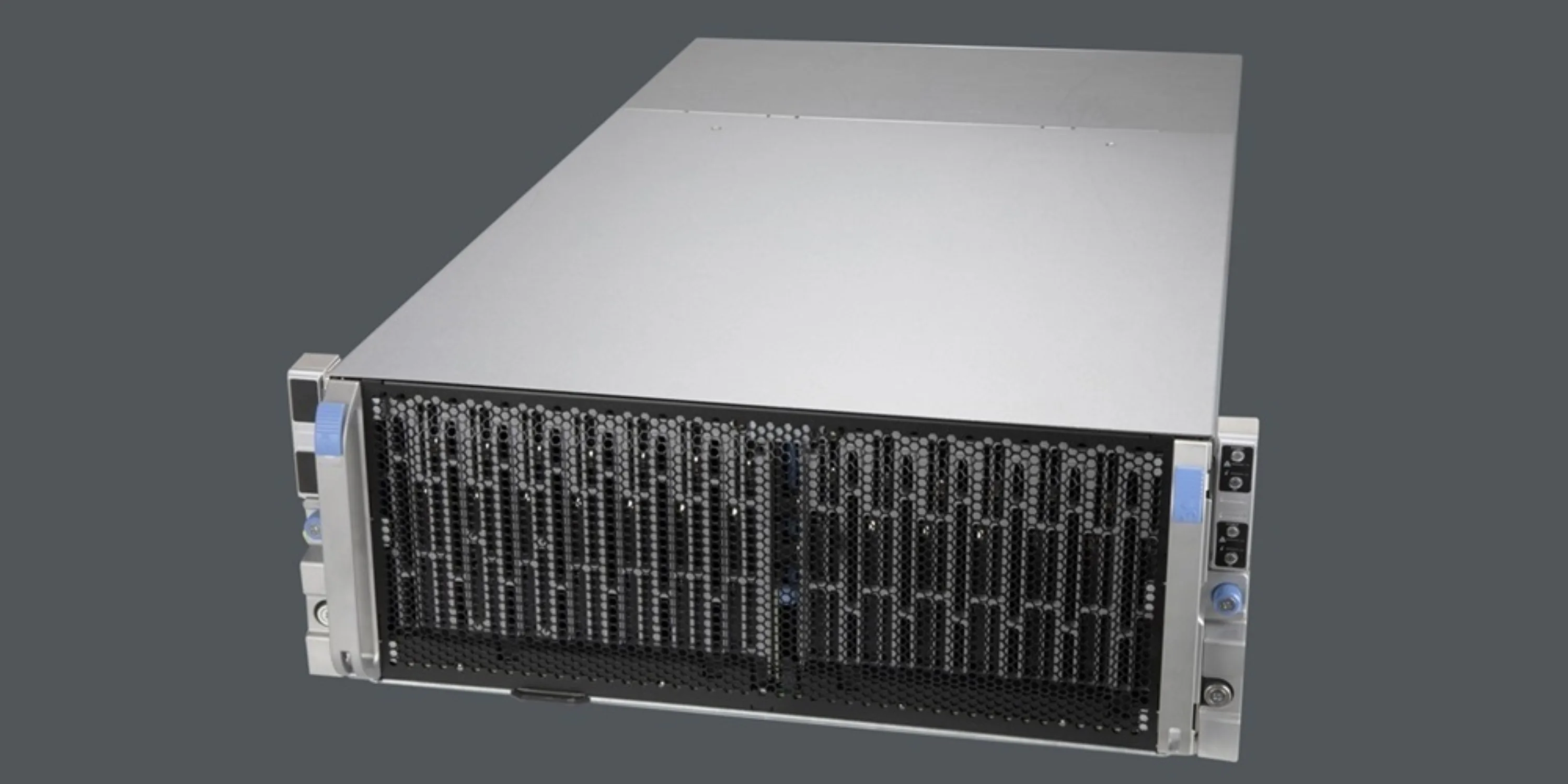

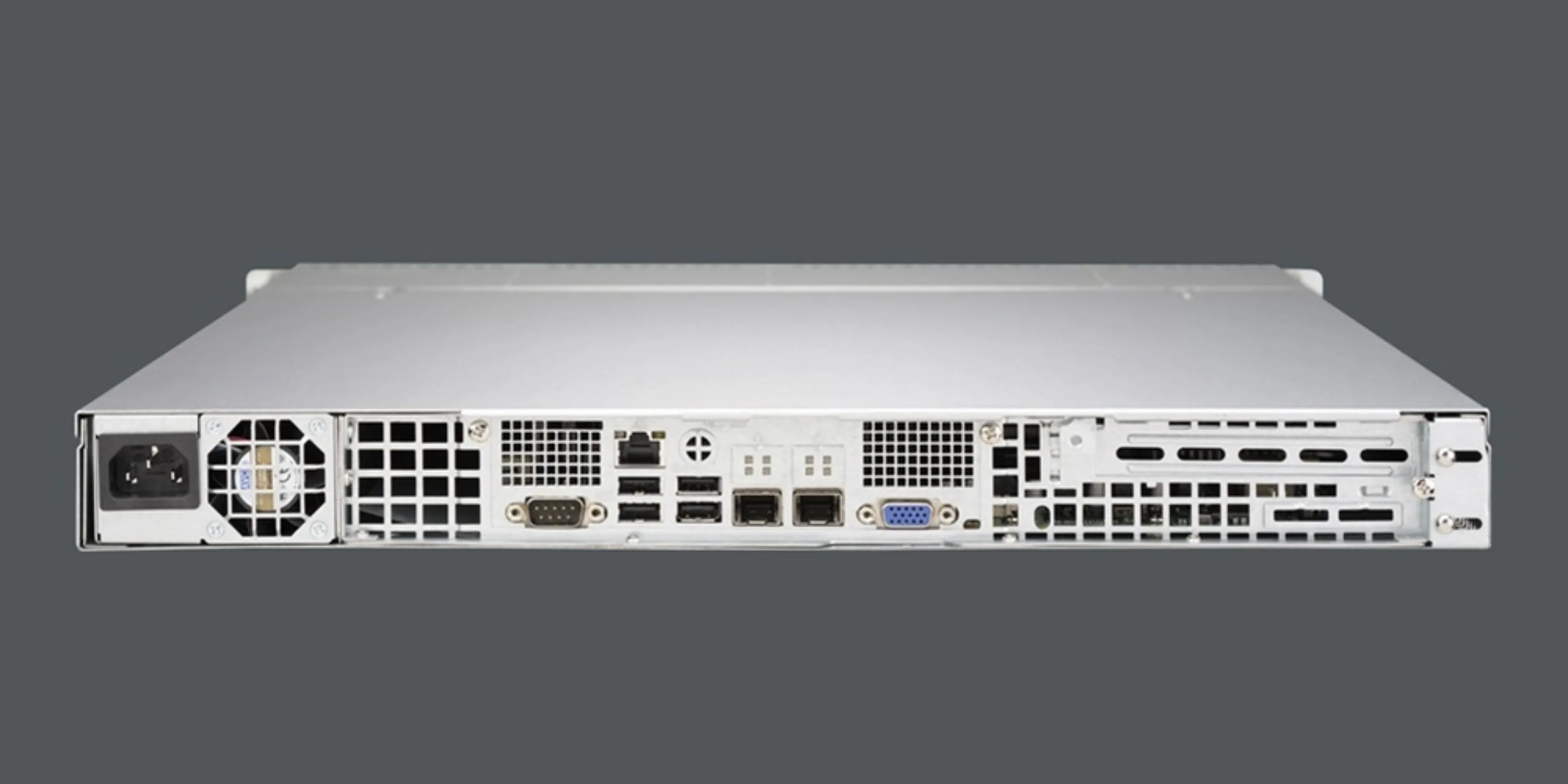

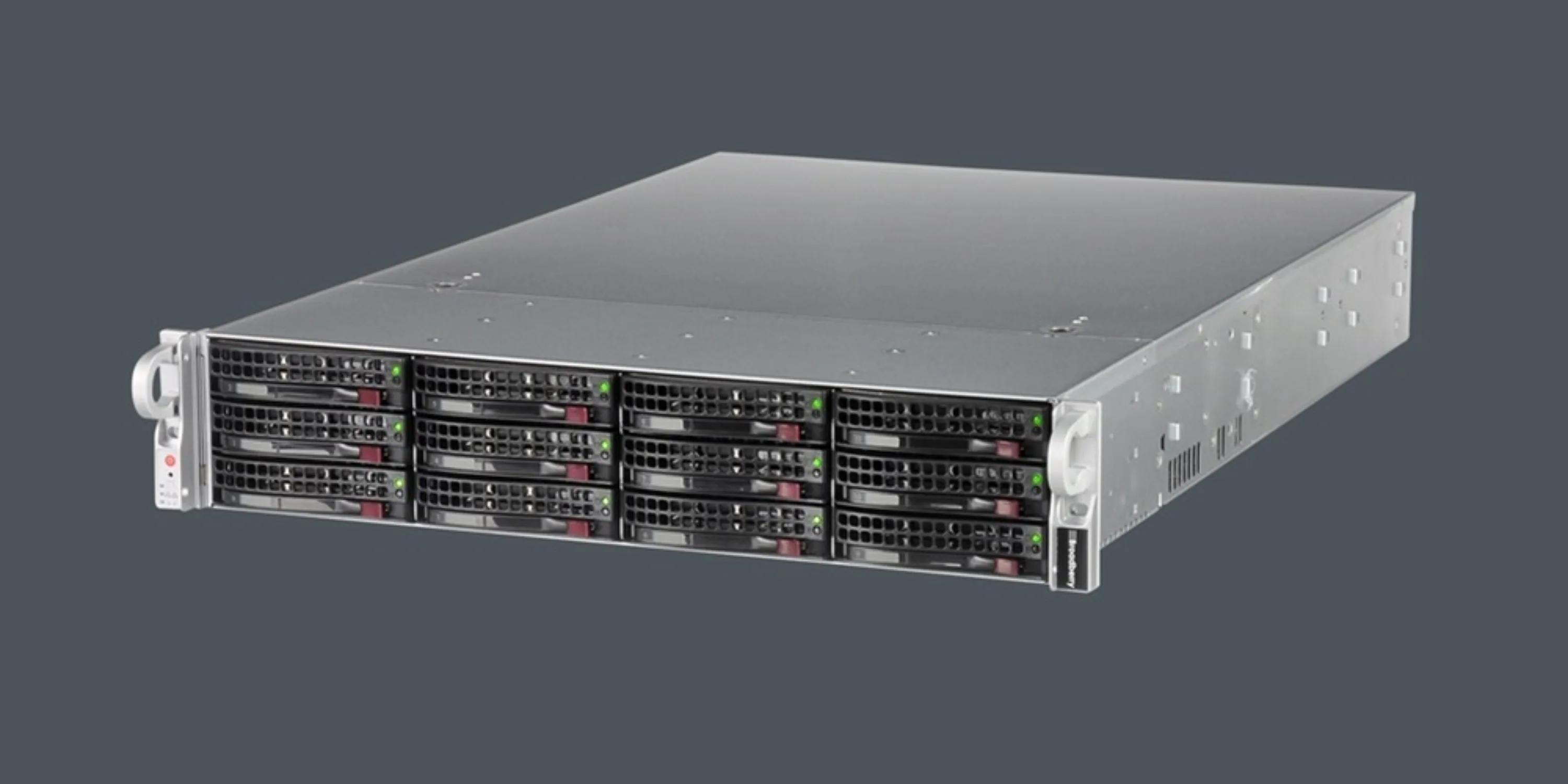

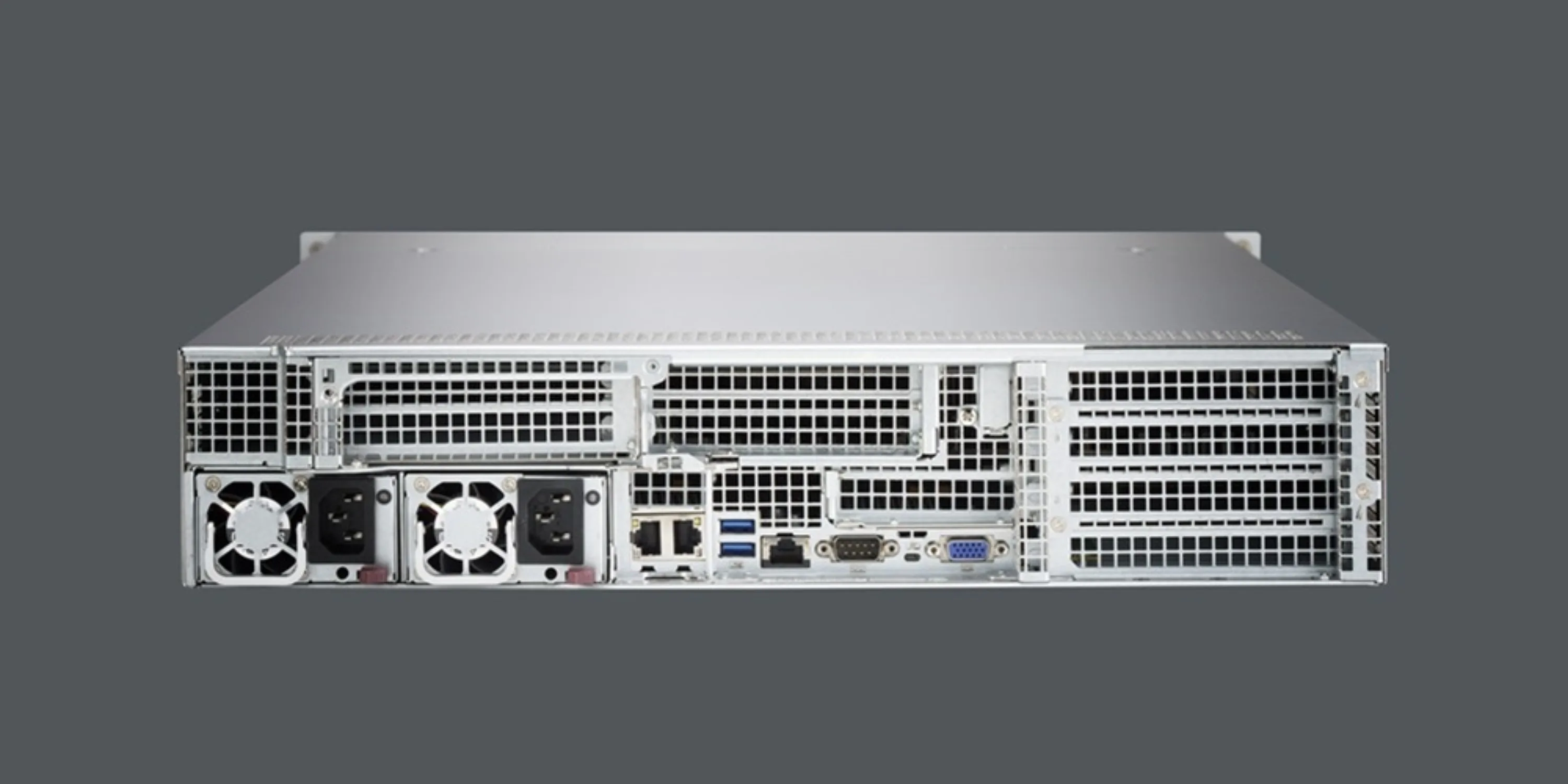

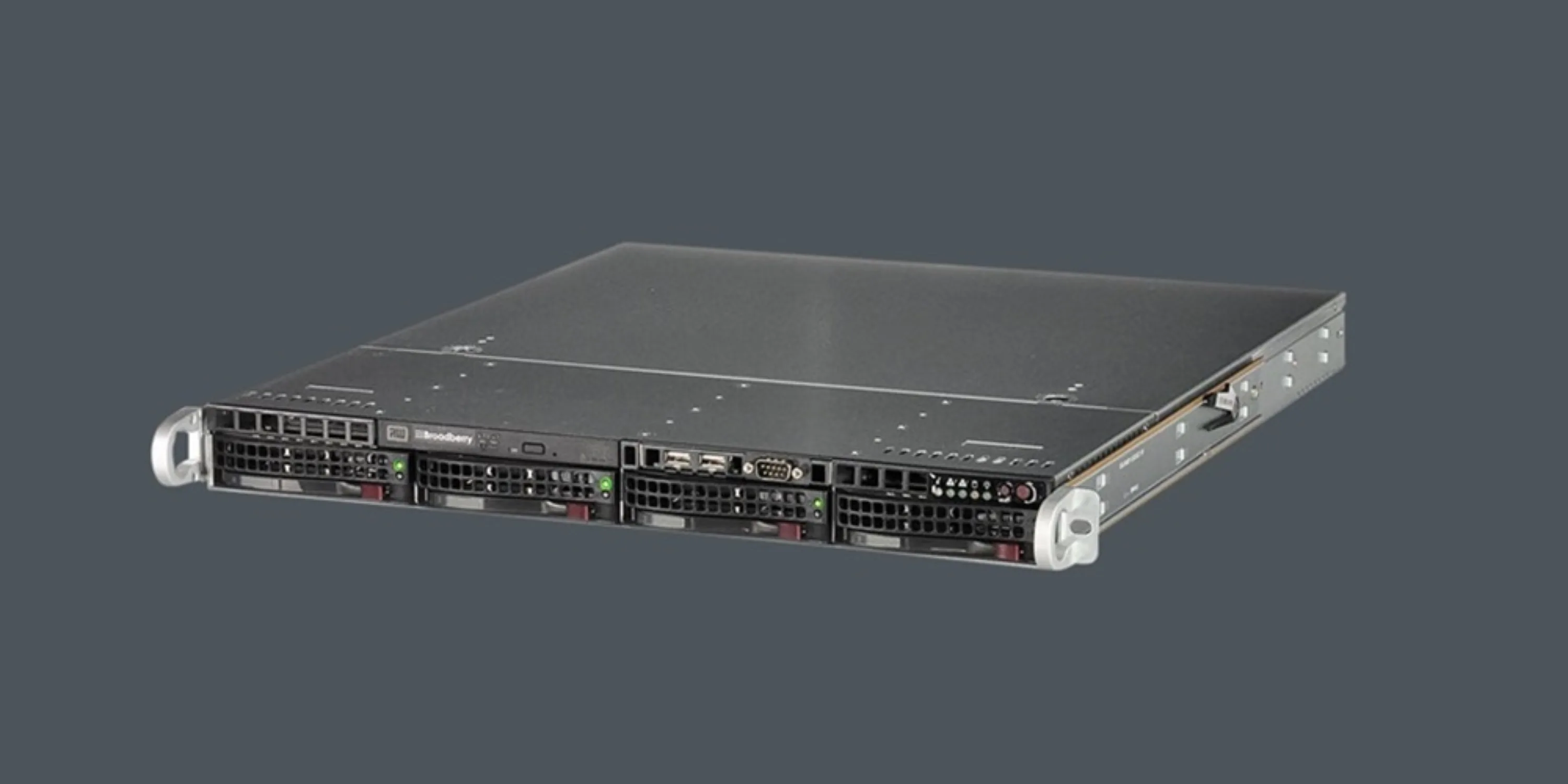

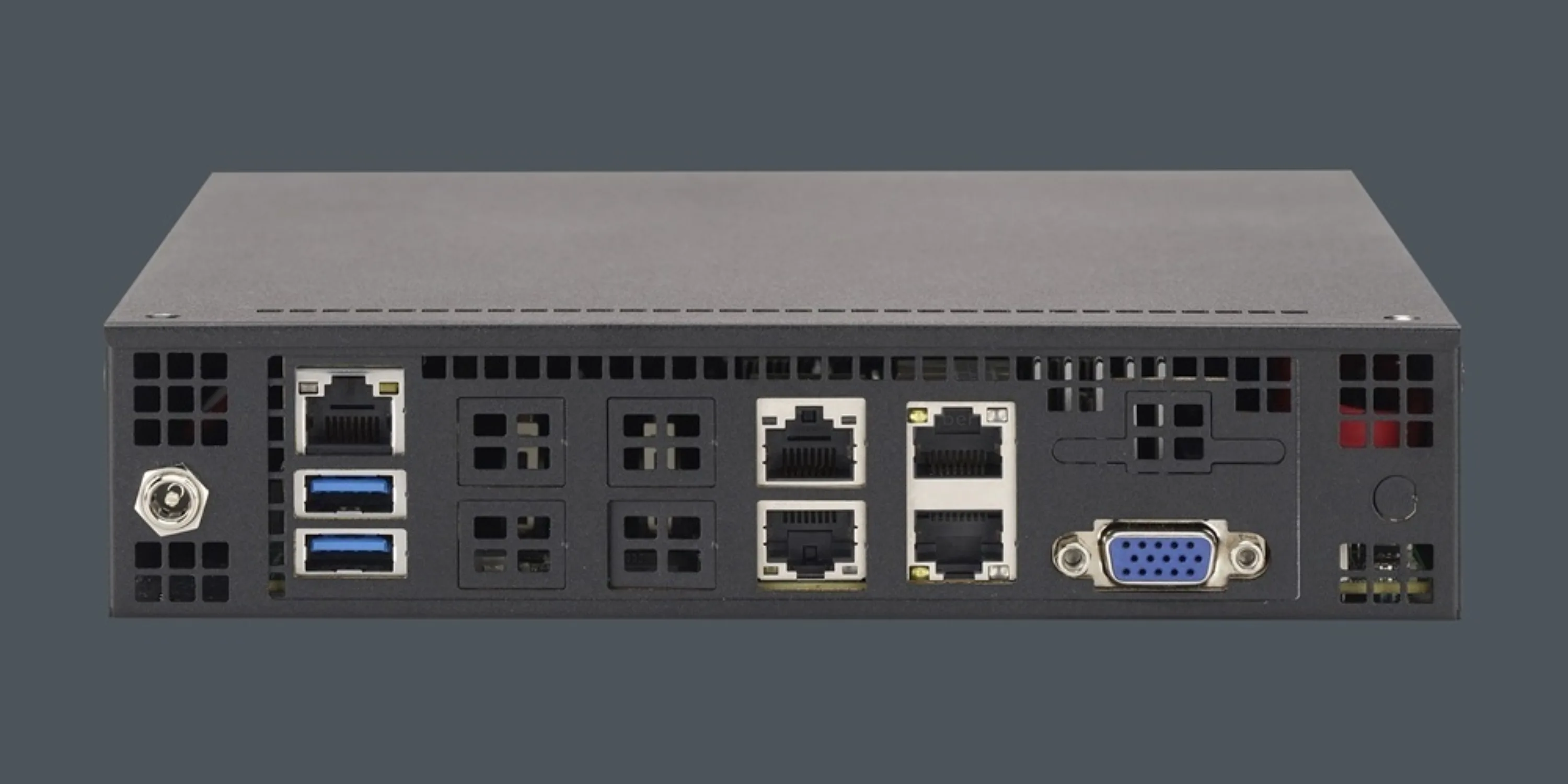

COMPUTE™ VMS Server Images
