Servers to Purchase

OBSERVE™ Clients

PURCHASE - OBSERVE™ Clients

The OBSERVE™ Client range from VMS Co. is purpose-built for viewing multiple, concurrent video streams on multiple monitors within video management systems. The following range is available to buy, supported by the manufacturer's next-business-day (NBD) warranty.

OBSERVE™ Professional Client Range

Scroll
OBSERVE™ Client Workstation Monitor Channels Concurrent D1 Streams GPU PSU Datasheet

OBS T-CLIENT i5 2M

2 24 0 1 https://www.videomanagementservers.com/assets/documents/optiplex-7010-micro-spec-sheet.pdf

OBS P-CLIENT i7 2M

2 48 0 1 https://www.videomanagementservers.com/assets/documents/precision-3460-sff-spec-sheet.pdf

OBS P-CLIENT i7 4M

4 150 1 1 https://www.videomanagementservers.com/assets/documents/precision-3460-sff-spec-sheet.pdf

OBSERVE™ 2U Rack Client Range

Scroll
CONFIRM™ 2U Rack Client Monitor Channels Concurrent D1 Streams GPU PSU Datasheet

OBS R-CLIENT i7 4M

4 150 1 2 https://www.videomanagementservers.com/assets/documents/VMS-Ltd-OBSERVE-Client-2U-Rack-Server-021225.pdf

OBS R-CLIENT i7 8M

8 300 2 2 https://www.videomanagementservers.com/assets/documents/VMS-Ltd-OBSERVE-Client-2U-Rack-Server-021225.pdf

OBSERVE™ Client CFF Module

Scroll
OBSERVE™ Client CFF Module Monitor Channels Concurrent D1 Streams GPU PSU Datasheet

OBS R-CLIENT MOD i7 4M

4 150 1 1 https://www.videomanagementservers.com/assets/documents/precision-3280-cff-spec-sheet.pdf
Scroll
Hyper-shelf 5U Datasheet

CVA HS-5U x7CFF

5U shelf for up to 7x CFF units (analytics and monitor modules)

https://www.videomanagementservers.com/assets/documents/hypershelf-115-8995_data_sheet_rev3.pdf

Notes

Typical OBSERVE™ Client builds are listed above. Other builds and specifications are available on request.

All OBSERVE™ Client options listed are optimised by VMS Co. for VMS and AI Analytics applications.

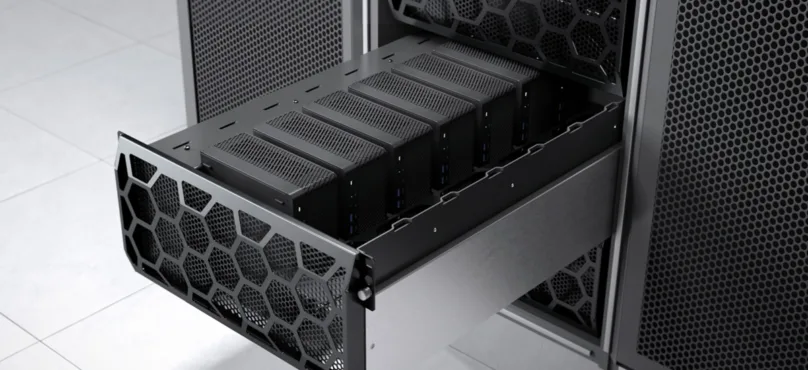

Up to seven OBSERVE™ Client CFF Modules can be fitted into one Hypershelf.

Concurrent D1 Streams and Monitors

Each Client has a maximum number of monitor connections and recommended maximum number of concurrent D1 streams quoted. The concurrent D1 streams is a budget quantity. They may be allocated across all, some or single quoted monitors, depending on the viewing requirements of the system. In heavy use cases, where many camera channels are being processed and viewed, it is the concurrent D1 stream quantities that determine the specification and performance of the Client, rather than the number of monitor channels.

Please contact VMS Co. for more information.

Contact

OBSERVE™ Client Specifications

The following is an overview of OBSERVE™ Client specifications, provided to help select the right client for your application. Comprehensive datasheets, providing far more detailed information, can be downloaded and viewed from the above OBSERVE™ Client product range table.

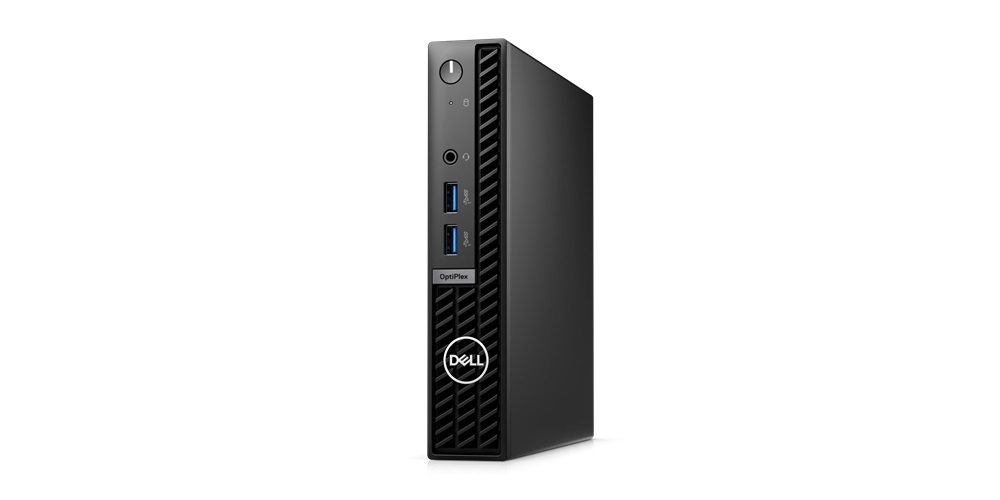

OBS T-CLIENT i5 2M

OBSERVE™ Thin Client for up to 2x monitors

24x D1 visualisation streams @15FPS/H264 (360FPS) across up to 2x monitors (3 to 4x 1080p)

  • OptiPlex 7010 Micro Form Factor Chassis
  • H 180 x W 36 x D 178 mm for Desk
  • Processor Intel® Co....re™ i5 24 MB cache, 14C/20T
  • RAM 8GB
  • Intel® Integrated Graphics - 2x DP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 256GB SSD
  • Single PSU
  • Manufacturers 3 Year Warranty

OBS P-CLIENT i7 2M

OBSERVE™ Professional Client for up to 2x monitors

48x D1 visualisation streams @15FPS/H264 (720FPS) across up to 2x monitors (6 to 8x 1080p)

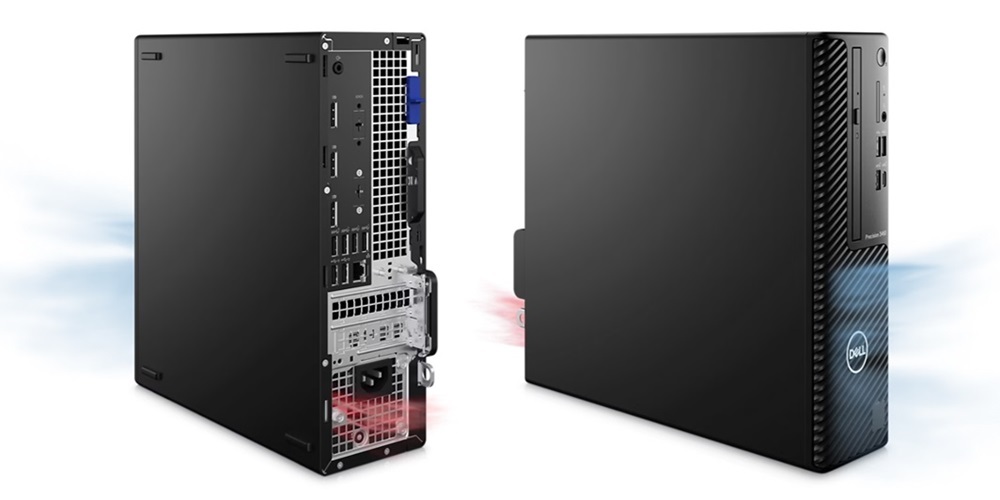

  • Precision Workstation SFF 3460 Chassis
  • H 290 x W 93 x D 293 mm for Desk
  • 4x internal HDD slots
  • Processor Intel® Co....re™ i7 33 MB cache 20C/23T
  • RAM 16GB
  • Intel® Integrated Graphics - 2x DP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 512GB SSD
  • Single PSU
  • Manufacturers 3 Year Warranty

OBS P-CLIENT i7 4M

OBSERVE™ Professional Client for up to 4x monitors

150x D1 visualisation streams @15FPS/H264 (2250FPS) across up to 4x monitors (20x 1080p visualisation streams)

  • Precision Workstation SFF 3460 Chassis
  • H 290 x W 93 x D 293 mm for Desk
  • 4x internal HDD slots
  • Intel® Co....re™ i7 30 MB cache 16C/24T
  • RAM 8GB
  • GPU NVIDIA® T1000, 8 GB, 4x mDP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 256GB SSD
  • Single PSU
  • Manufacturers 3 Year Warranty

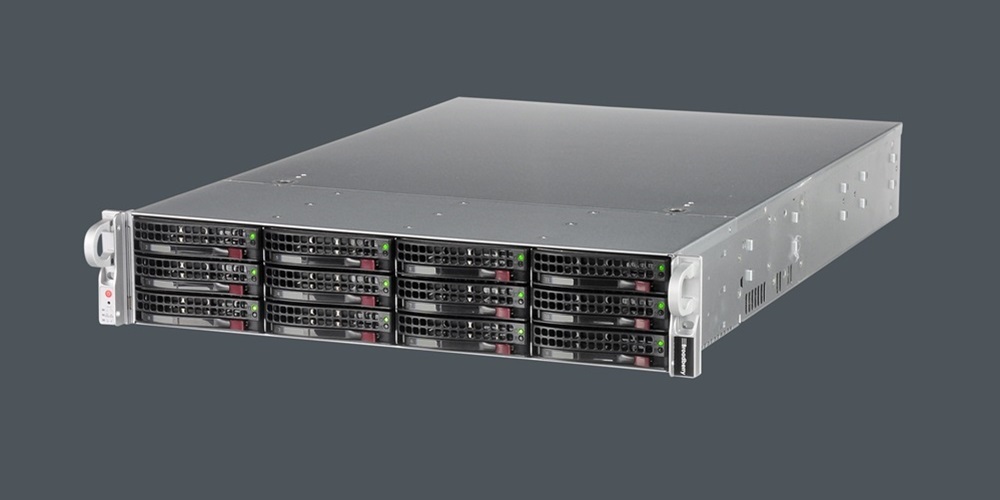

OBS R-CLIENT-4M

OBSERVE™ 2U Rack Server: 4x Monitor Client

150x D1 visualisation streams @15FPS/H264 (2250FPS) across up to 4x monitors (20x 1080p visualisation streams)

  • Storage bays / 8x 3.5" HDDs
  • Processor Intel® Xeon Silver™ 12 Co....re 30M Cache
  • RAM 2x16GB
  • GPU NVIDIA® RTX™ A2000, 12 GB, 4x mDP
  • Operating system Windows Server 2019 / 2022
  • OS drives 1x 480GB SSD
  • Dual PSU
  • 9 - 5 tech support. Return to base warranty
  • NBD warranty option at extra cost

OBS R-CLIENT-8M

OBSERVE™ 2U Rack Server: 8x Monitor Client

300x D1 visualisation streams @15FPS/H264 (4500FPS) across up to 8x monitors (40x 1080p visualisation streams)

  • Storage bays / 8x 3.5" HDDs
  • Processor Intel® Xeon Silver™ 12 Co....re 30M Cache
  • RAM 2x16GB
  • GPU DUAL NVIDIA® RTX™ A2000, 12 GB, 8x mDP
  • Operating system Windows Server 2019 / 2022
  • OS drives 1x 480GB SSD
  • Dual PSU
  • 9 - 5 tech support. Return to base warranty
  • NBD warranty option at extra cost

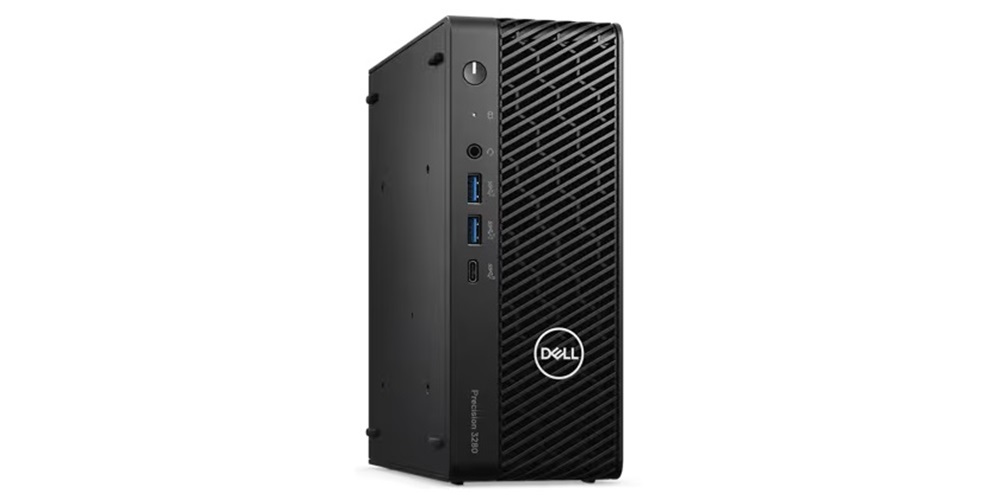

OBS R-CLIENT MOD i7 4M

OBSERVE™ Professional Client MODULE for up to 4x monitors

150x D1 visualisation streams @15FPS/H264 (2250FPS) across up to 4x monitors (20x 1080p visualisation streams)

  • Precision Co....mpact CFF module CFF3280 Chassis
  • H 206 x W 80 x D 178 mm for Desk or Rack mount in Hypershelf
  • 1x internal HDD slots
  • Intel® Co....re i7 12 MB cache 20C/28T
  • RAM 8GB
  • GPU NVIDIA® T1000, 8 GB, 4x mDP
  • Operating system Windows 11 Pro 64 Bit
  • OS drives 1x 256GB SSD
  • Single PSU
  • Manufacturers 3 Year Warranty

CVA HS-5U x7CFF

Hypershelf 5U: for up to 7x CFF modules

  • 5U shelf for up to 7x CFF units (analytics and monitor modules)

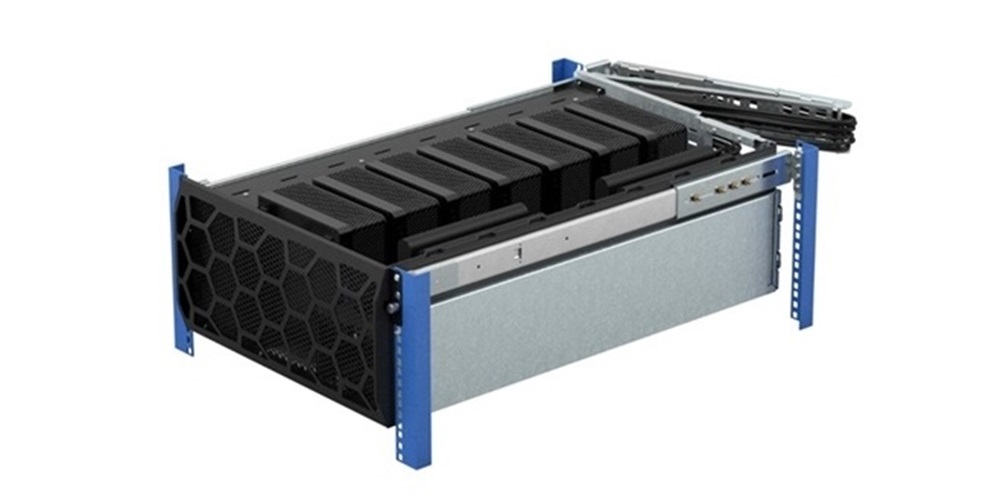

Above: Hyper shelf 5U, for up to 7x CFF modules.

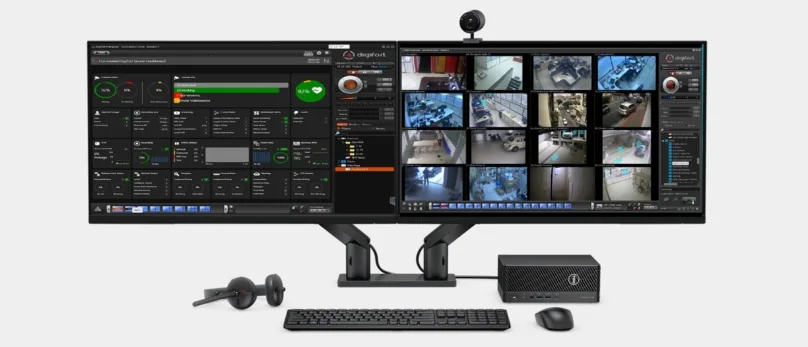

Below: OBS R-CLIENT MOD i7 4M Client Module for up to 4x monitors shown with monitors for scale

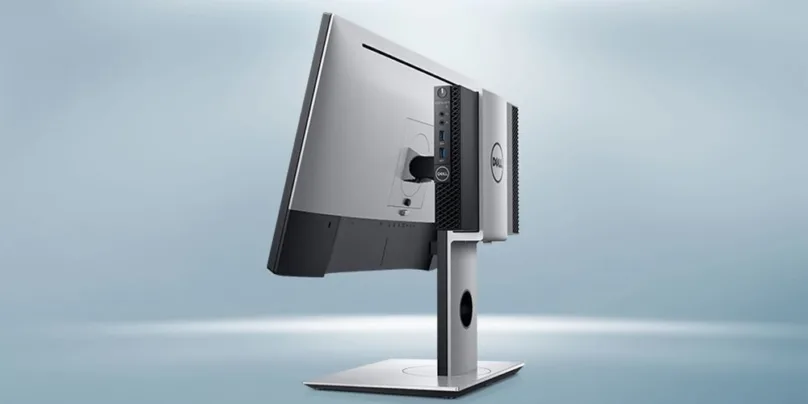

Above: OBS T-CLIENT i5 2M shown mounted with a monitor bracket
